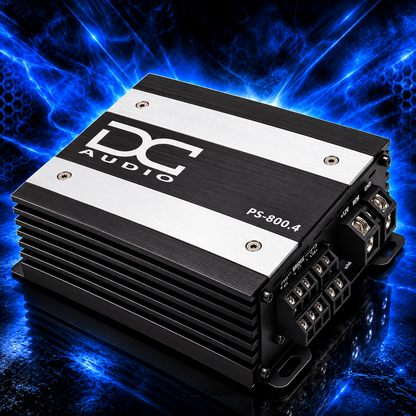

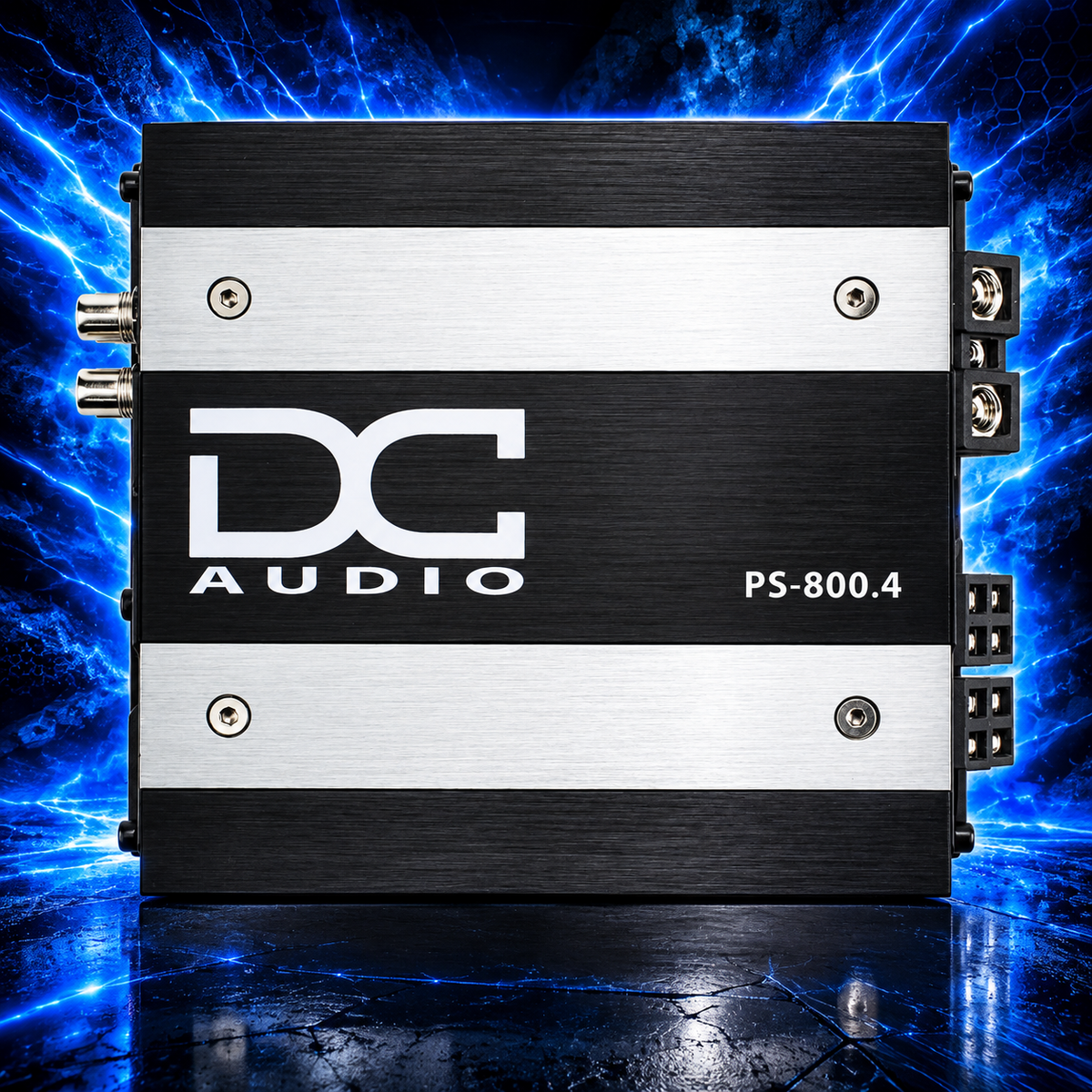

PS800x4 - Mini 4 Channel Amplifier
Couldn't load pickup availability
About the Product

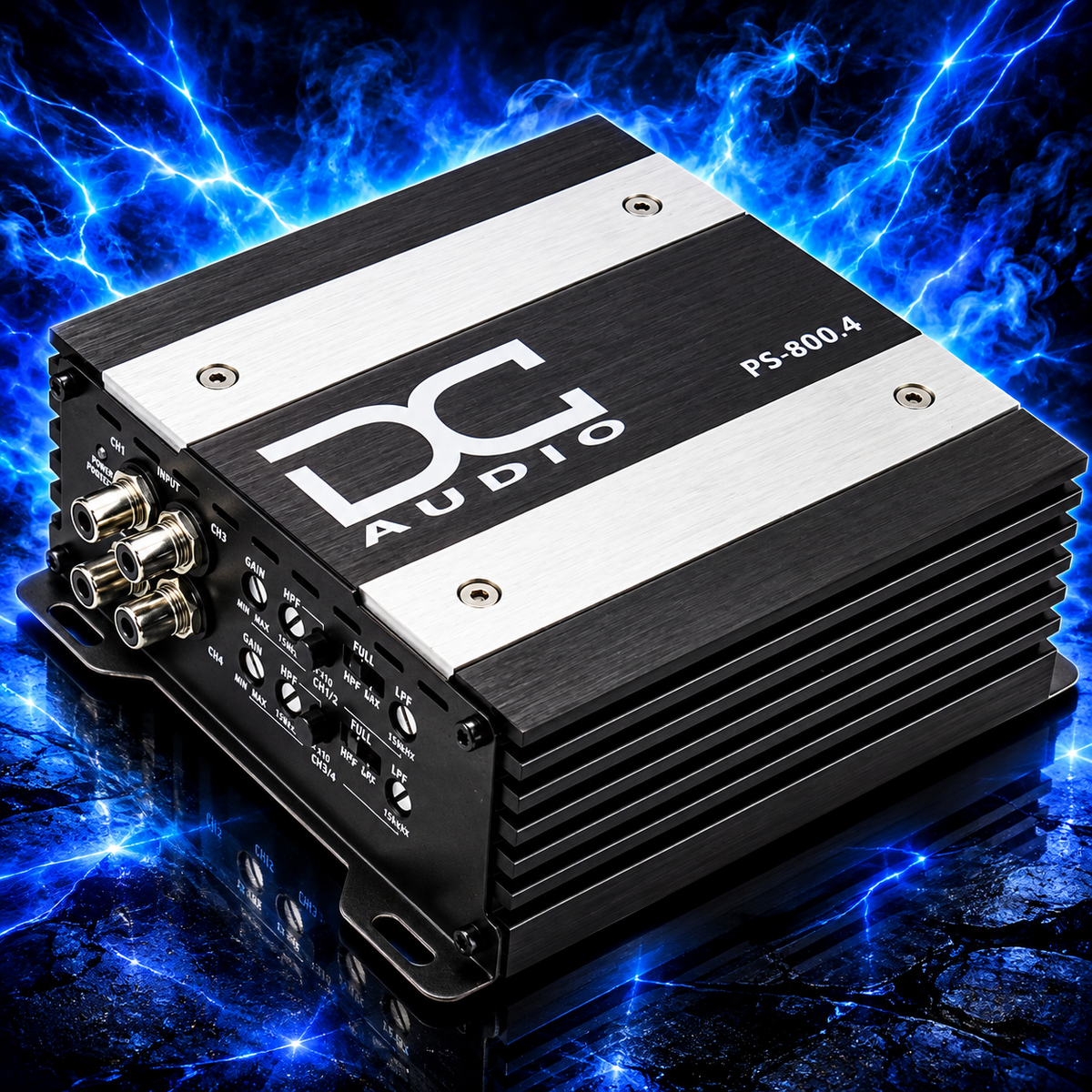

DC Audio PS-800x4 – Compact Size. Serious Power. Total Control.
SIZE - Length 5.4" x Width 5.23" x Height2.3"
Big Power. Small Footprint. Unmatched Versatility.
Take your car audio system to the next level with the DC Audio PS-800x4 Full Bridge 4-Channel Amplifier. Engineered to deliver serious power without taking up valuable installation space, this compact powerhouse is built for car audio enthusiasts who demand loud, clean sound, flexible tuning, and reliable performance.
Whether you're powering high-performance door speakers, aftermarket mids and highs, pro audio speakers, or building a custom stunt wall, the PS-800x4 delivers the power and crossover control needed to get the job done.
Don't let its small size fool you. With up to 220 watts RMS per channel at 2 ohms and an impressive 450 watts RMS x 2 bridged at 4 ohms, this amplifier packs serious output into an incredibly compact chassis.

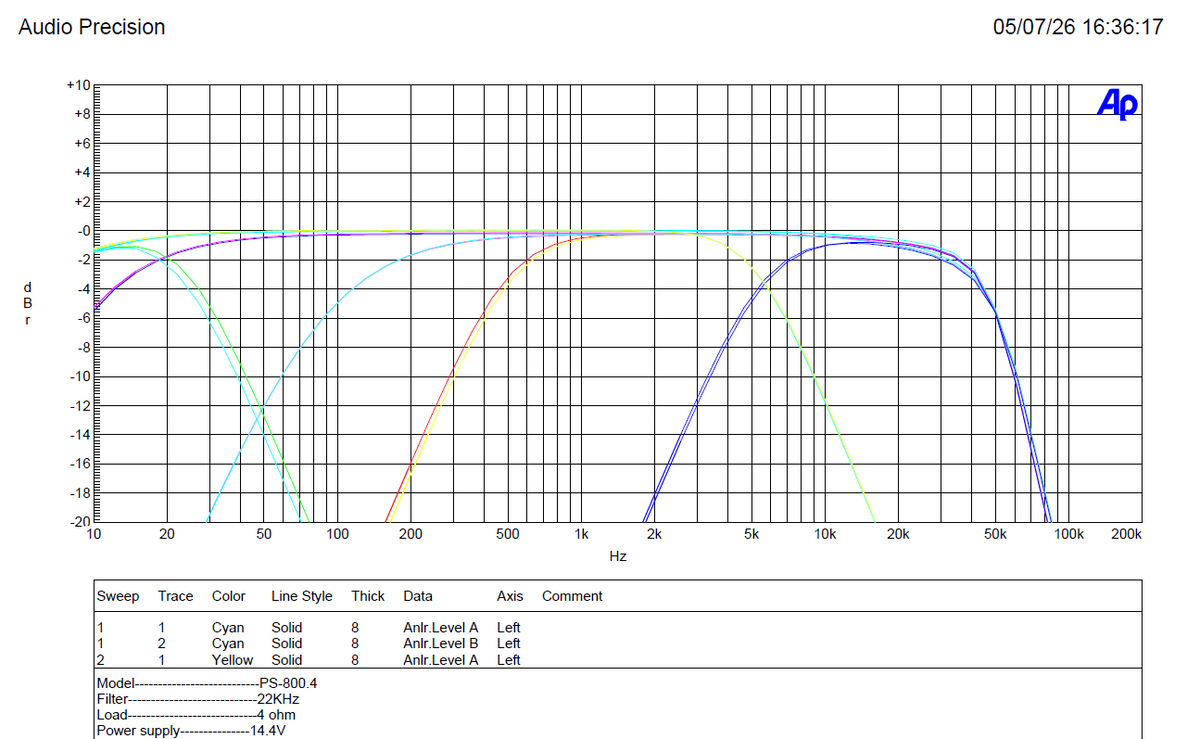

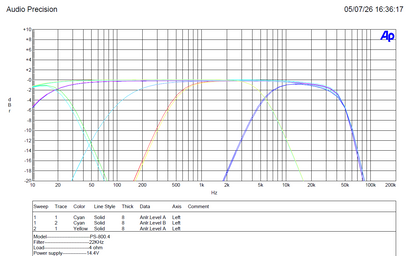

Advanced Crossover Control – Built for Serious Audio Systems
What really sets the DC Audio PS-800x4 apart from other compact 4-channel car amplifiers is its versatile crossover network.
Unlike basic 4-channel amplifiers, the PS-800x4 features independent crossover controls for channels 1/2 and channels 3/4, giving you greater flexibility when designing and tuning your sound system.

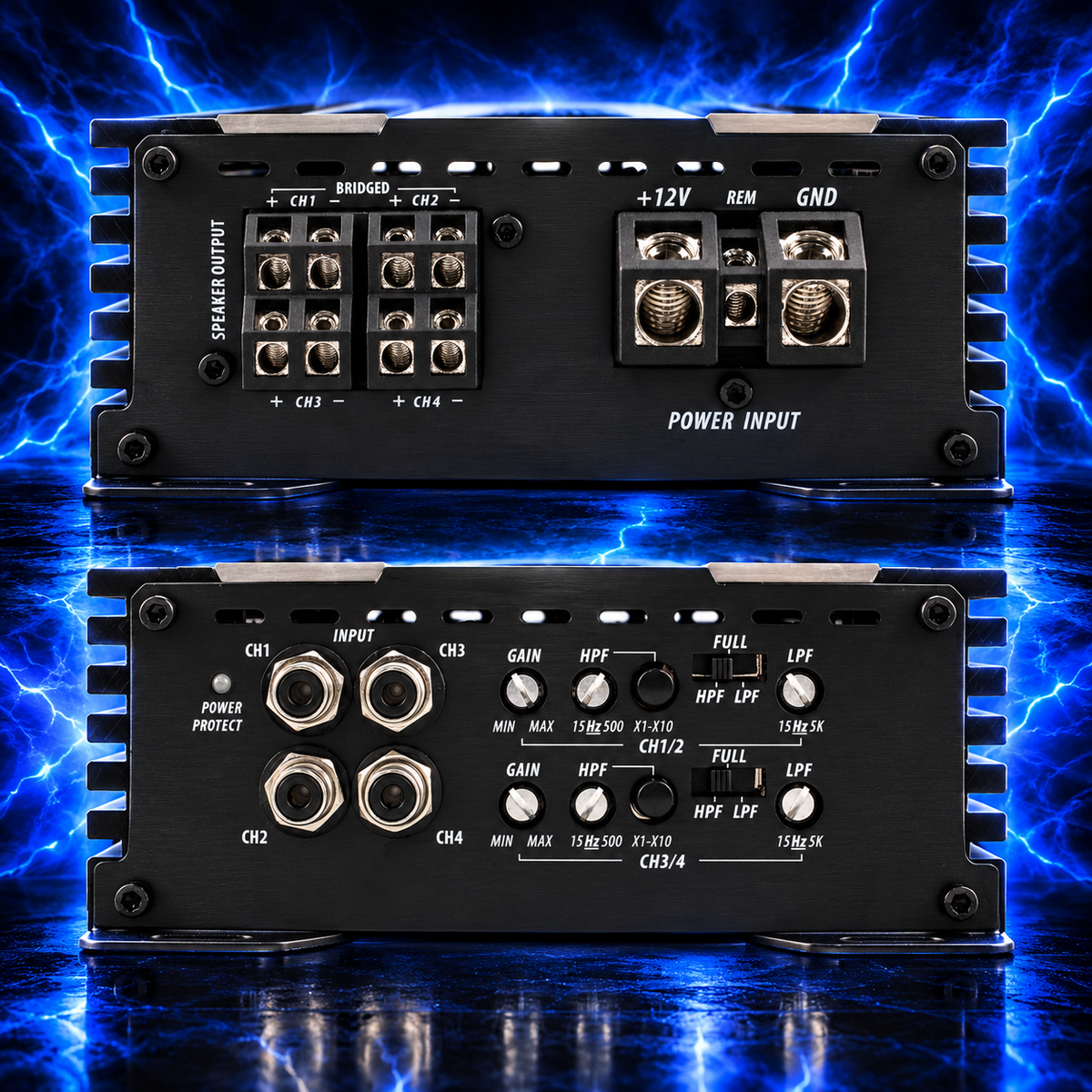

Each channel pair includes:
- Adjustable Gain Control – Fine-tune input sensitivity for proper system matching.
- Variable High-Pass Filter (HPF) – Control lower frequencies reaching your speakers.
- Variable Low-Pass Filter (LPF) – Customize frequency output for your application.
- Full Range Mode – Run your speakers with a full-range signal.
- x10 Crossover Multiplier Switch – Expand your crossover adjustment range for active mids and highs setups.
The x10 crossover feature makes this amplifier especially attractive for enthusiasts building active car audio systems, high-output mids and highs setups, and pro audio stunt doors.
Whether you're chasing crystal-clear vocals, aggressive midrange output, or powerful highs, the PS-800x4 gives you the tuning flexibility to dial in your sound.
Massive Power in an Ultra-Compact Design
Space is valuable in any custom car audio installation. That's why DC Audio designed the PS-800x4 using efficient full bridge amplifier technology to deliver high power output in a remarkably small package.
Measuring just 5.51 inches long, 5.23 inches wide, and 2.3 inches tall, this amplifier can fit into tight installation spaces where traditional large amplifiers simply won't work.
It's an excellent solution for cars, trucks, SUVs, motorcycles, and custom audio builds where installation space is limited but performance cannot be compromised.
Less Space. More Power. Get On Our Level.

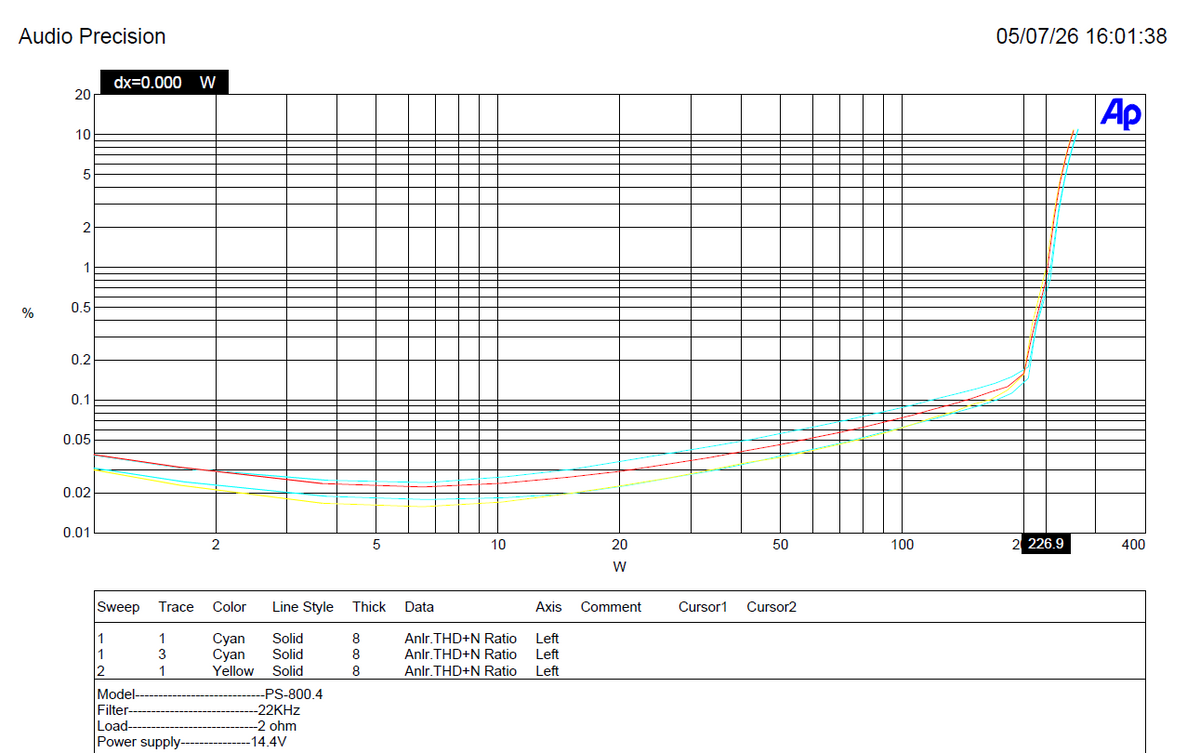

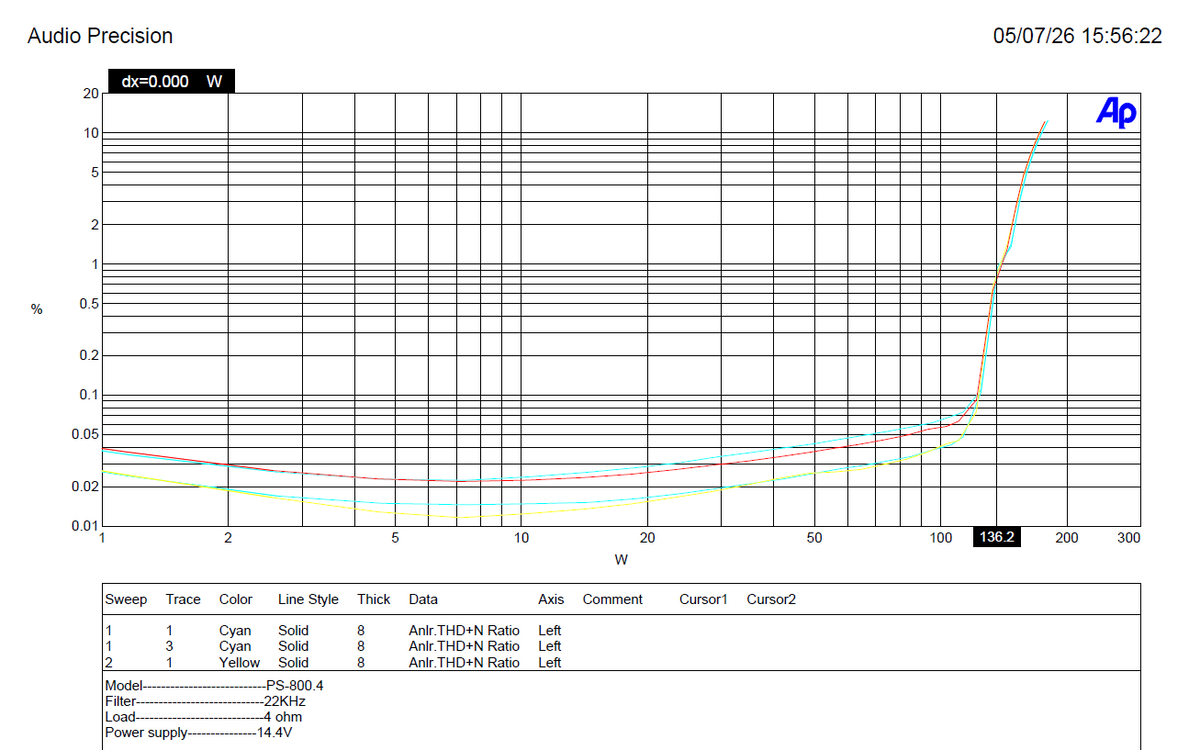

DC Audio PS-800x4 RMS Power Ratings
Tested at 14.4 Volts
| Impedance | RMS Output Power |
|---|---|
| 4 Ohms Stereo | 130 Watts x 4 |

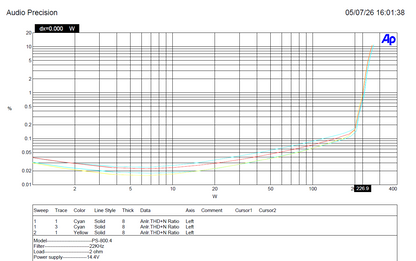

| 2 Ohms Stereo | 220 Watts x 4 |

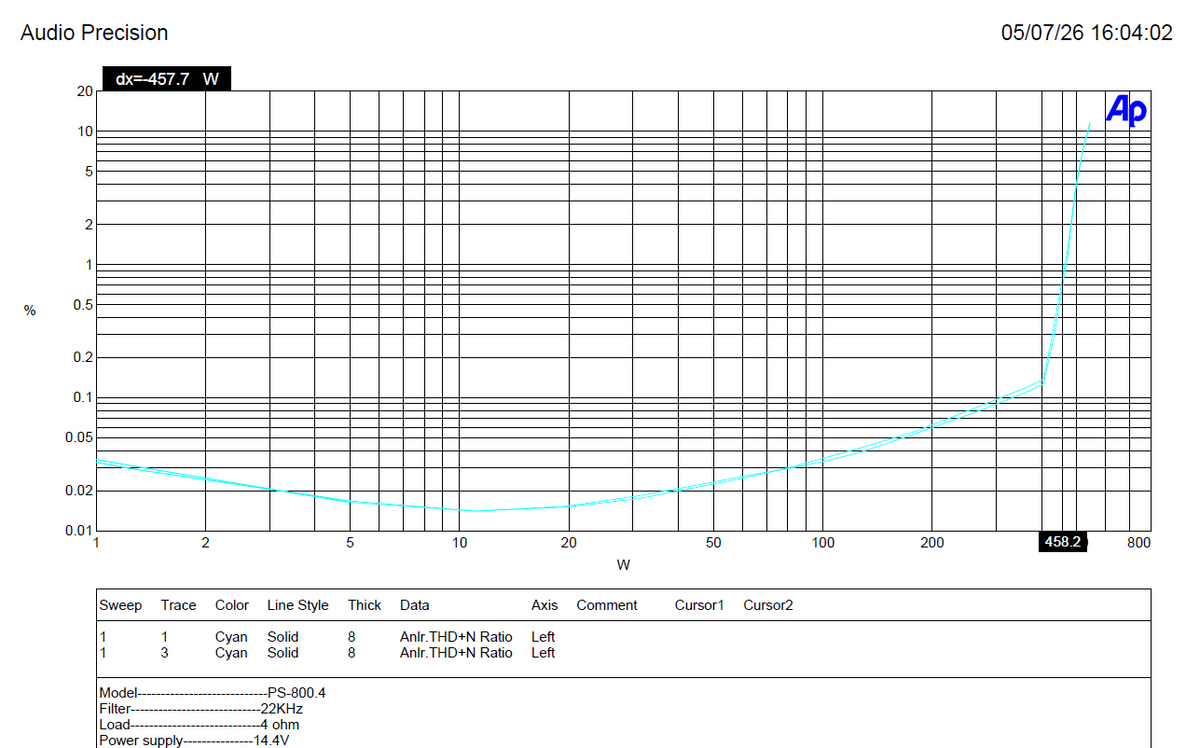

| 4 Ohms Bridged | 450 Watts x 2 |
With 2-ohm stereo stability and 4-ohm bridged capability, the PS-800x4 offers flexible power configurations for a wide range of speaker setups.
Why Choose the DC Audio PS-800x4?
- High-Power Full Bridge Design: Serious output from an incredibly compact amplifier.
- 4-Channel Flexibility: Power multiple speakers or bridge channels for increased output.
- Advanced Active Crossover Capability: Independent crossover sections with x10 multiplier switches.
- 2-Ohm Stereo Stable: Drive demanding aftermarket speakers with confidence.
- 4-Ohm Bridged Stable: Combine channels for higher-powered applications.
- Compact Installation Footprint: Ideal for tight spaces and custom installations.
- 4 AWG Power Inputs: Designed for high-current power connections.
- Tiffany-Style RCA Inputs: Quality signal connections for your audio system.
- Power and Protect LED Indicators: Convenient amplifier status monitoring.
- Wide Operating Voltage Range: Supports 9–16V electrical systems.
Built for the Way You Listen
The DC Audio PS-800x4 is an excellent choice for:
- High-output car audio mids and highs systems
- Custom stunt doors and stunt walls
- Active crossover speaker configurations
- Aftermarket door speaker upgrades
- Pro audio midrange and tweeter installations
- Compact multi-amplifier installations
- Custom motorcycle and powersports audio systems with compatible electrical systems
From daily-driven sound systems to aggressive high-output builds, the PS-800x4 delivers the performance and tuning flexibility that serious car audio enthusiasts demand.
Technical Specifications
| Specification | DC Audio PS-800x4 |
|---|---|
| Amplifier Type | Full Bridge 4-Channel |
| Input Sensitivity | 8V – 0.4V |
| Frequency Response | 10Hz – 30kHz |
| Crossover Slope | 12dB / Octave |

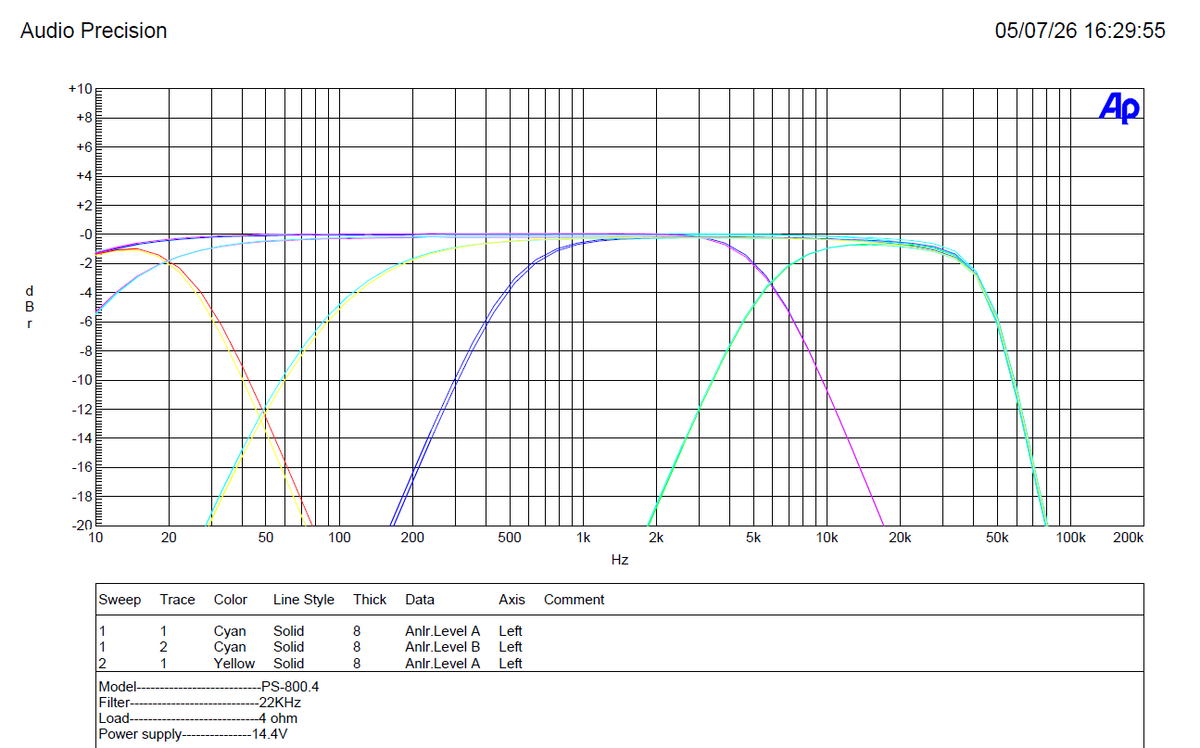

| High-Pass / Low-Pass Crossover | 50Hz – 500Hz with x10 Switch |
| Full Range Mode | Yes |
| Subsonic Filter | No |
| Bass Boost @ 45Hz | No |
| Phase Shift | No |
| Remote Control | No |
| Clip Indicator | No |
| Signal-to-Noise Ratio | 90dB |
| Damping Factor | Greater Than 90 |
| THD @ 4 Ohms | 0.1% |
| Fuse Rating | External 80A |
| LED Status Indicators | Power / Protect |
| Master / Slave | No |
| Operating Voltage | 9V – 16V |
| Power Connections | 4 AWG |

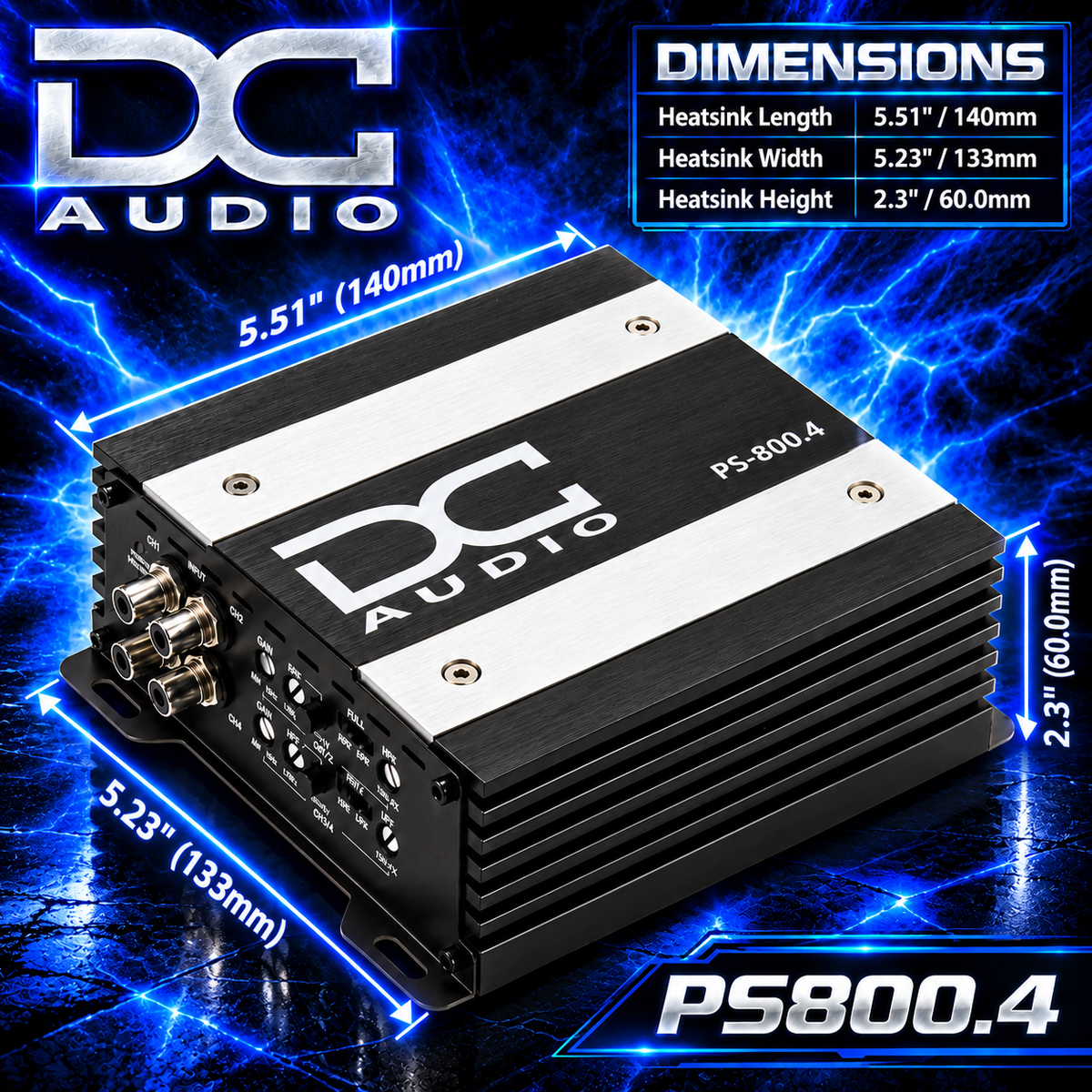

Compact Amplifier Dimensions
| Dimension | Measurement |
|---|---|
| Heatsink Length | 5.51" / 140mm |
| Heatsink Width | 5.23" / 133mm |
| Heatsink Height | 2.3" / 60mm |
Upgrade Your Sound with DC Audio
Why settle for an oversized amplifier with limited tuning options when you can have compact size, powerful output, and advanced crossover control in one package?
The DC Audio PS-800x4 4-Channel Full Bridge Amplifier is built for enthusiasts who want more power, more control, and more flexibility from their car audio systems.
Turn up the volume. Take control of your sound. Get On Our Level.
Order your DC Audio PS-800x4 today.
